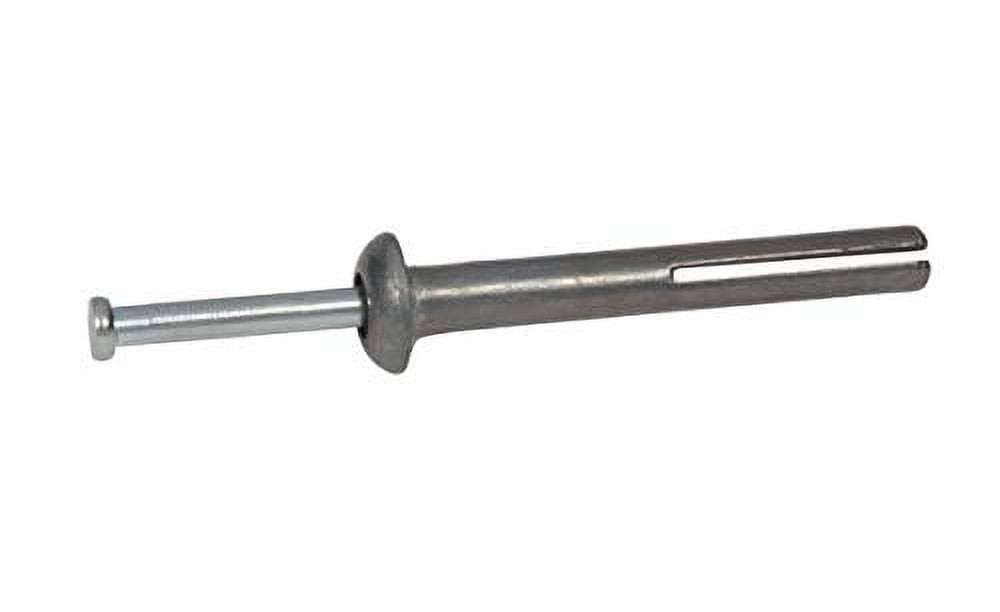

CONFAST 1/4" x 1-1/4" Hammer Drive Nail in Anchor (100 per Box)

<p>Applications</p><p>The anchor is made from ZAMAC. This anchor is designed for use in Concrete, Block, and Brick.</p><p></p><p>Environment</p><p>The anchor is designed for use in a Dry environment.</p><p></p><p>Hole Diameter/Bit Diameter</p><p>The anchor requires a 1/4" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.</p><p></p><p>Diameter of Anchor </p><p>The diameter of the anchor is 1/4".</p><p></p><p>Length Anchor </p><p>The length of the anchor is 1-1/4"</p><p>Minimum Embedment</p><p>The minimum anchor embedment into the concrete is 3/4". Therefore, the anchor must be installed so that a minimum of 3/4" of the anchor is embedded into the concrete.</p><p></p><p>Spacing between Anchors</p><p>Each anchor must be spaced a minimum distance of 2-1/2" from each other when measured center to center.</p><p></p><p>Edge Distance</p><p>It is very important not to install the anchor any closer than 1-1/4" from an unsupported edge of the concrete.</p>

• INSTALLS INTO A VARIETY OF BASE MATERIALS-Can be used in a variety of applications making job easier and faster
• ANCHOR DIAMETER EQUALS HOLE DIAMETER-Makes it easy to determine hole size
• ALL SIZES PACKAGED 100 PIECES PER BOX-Quantity makes it easier to purchase and use
• PERMANENT FASTENING-Once installed, fastener cannot be removed, very secure
